Scott CYL FWC 1300
Product Reference
CYL FWC 1300
Here are Resmar we are proud to be able to offer our customers the Scott safety range of high-quality safety products.
- 15 Year Cylinder
- 300 Bar Valve
- 4.7 Litres Water Capacity
- 1300 Litres of air
- 32 Minutes of Duration
Price Available on Request
Please contact Resmar directly to discuss this product and get a personalised quote... thank you
Call us for a price +44 (0)345 803 3399
or please... send us a message and we'll get right back
More Information

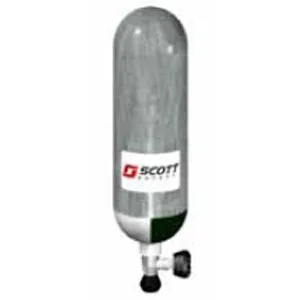

The Scott CYL FWC 1300, 15 years cylinder has a 300 bar cylinder valve and a water capacity of 4.7 Litres.
Its charging pressure being 300 bars and test pressure is 450 bar, it is capable of a volume of air of 1300 Litres.
It is constructed from carbon fibre, with an aluminium liner. The body is unpainted and has a black-and-white quartered neck.
The body is constructed from nickel- plated brass, the spindle from brass, the handwheel is 30% glass- filled polyamide and it has Nitrile O-rings and a polychloroprene rubber buffer.
The connection is a DIN type to EN144 2. The unit fully conforms to CE specification according with PED manufacturing and EN12245.
The dimensions of the shell are approximately 137 mm x 485 mm and, fully charged, it weighs approximately 5.2 kg (or 2.8 kg uncharged).
Based on 401pm, it supplies a duration of 32 minutes.
The handwheel is a locking type, which employs a spring-loaded racket mechanism.
The valve thread type is M18 x 1.5,parallel to EN 144 1.
