Scott CYL FWC 379-2400
Manufacturer
Scott
Product Reference
CYL FWC 379-2400
Here are Resmar we are proud to be able to offer our customers the Scott safety range of high-quality safety products.
- 379 Bar Cylinder
- 7.6 Litres Water Capacity
- 2400 Litres Air Capable
- Weighs approx 8.4kg
- Duration between 48 Mins - 60 Mins
Price Available on Request
Please contact Resmar directly to discuss this product and get a personalised quote... thank you
Call us for a price +44 (0)345 803 3399
or please... send us a message and we'll get right back
More Information

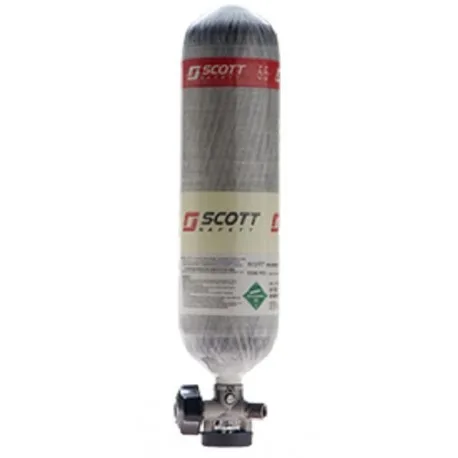

The Scott CYL FWC 379-2400 cylinder is fitted with a 379 bar cylinder valve and has a water capacity of 7.6 Litres.
Its charging pressure being 379 bars and test pressure is estimated at 540 bar, (TBD) it is capable of a volume of air of 2400 Litres.
It is constructed from carbon fibre, with a fully wrapped aluminium liner. The body is unpainted and has a black-and-white quartered rubber boot.
The connection is a DIN type to EN144-2. The unit fully conforms to CE specification according with PED 97/23/EC manufacturing and is also in accordance with ISO 11119-2 specification.
The body is constructed from nickel- plated brass, the spindle from brass, the handwheel is TPE and it has Nitrile O-rings and a polychloroprene rubber buffer.
The dimensions of the shell are approximately 167mm x 620mm and, fully
charged, it weighs approximately 8.4kg (or 4.6kg uncharged).
The handwheel is a locking type, which employs a spring-loaded racket mechanism.
Based on 40 LPM, it supplies the user with breathable air for a total duration of 60 minutes. At 50 LPM, it will supply air for 48 minutes.
The valve neck thread type is M18 x 1.5, parallel to EN 144-1.
